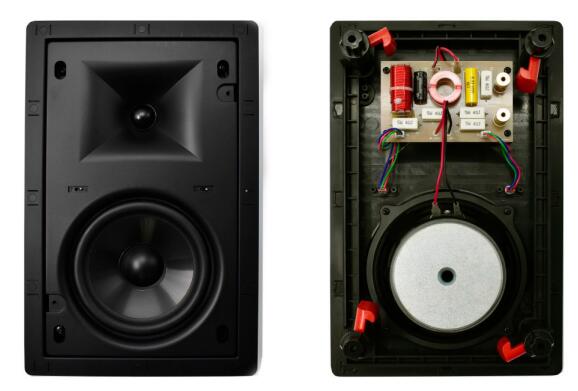

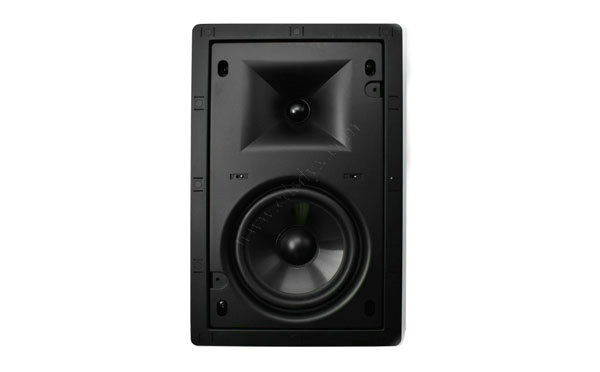

      IW-620/IW-820

      　　The IW-620/820 itself has a tweeter made of silk, which can be made into a titanium tweeter for customer needs. velc
      内容介绍

      　　The IW-620/820 itself has a tweeter made of silk, which can be made into a titanium tweeter for customer needs. velcor can help customers pick up the screw lock!!

      IW-620/IW-820




      IW-620

      IW-820

      Tweeter

      1" (25 mm) Titanium soft dome

      1" (25 mm) Titanium soft dome

      Woofer

      6.5" (165 mm) Graphite Cone, Rubber Surround

      8" (203 mm) Graphite Cone, Rubber Surround

      Frequency Range+/-3

      46 Hz -20k Hz

      40 Hz -20k Hz

      Power Handing RMS

      80 W program , 40 W ( IEEE 219 )

      100 W program , 50 W ( IEEE 219 )

      Sensitivity

      85 dB

      85 dB

      Taps

      N/A

      N/A

      Impedance

      8 ohms

      8 ohms

      Termination

      Standard pressed connector

      Standard pressed connector

      Included Accessories

      Cuout template grille

      Cuout template grille

      Dimensions

      14.21" x 9.17"  x 3.93" (361mm x 233mm x 100mm)

      15.75" x 10.35"  x 3.93" (400mm x 263mm x100mm )

      Cut out diameter

      12.99" x 7.95" (330mm x 202mm )

      14.72" x 9.11" (374mm x 231.5mm )

      Certifications

      N/A

      N/A
